Name: V-SOL 8-Port GPON OLT | V1600G1
Availability: InStock

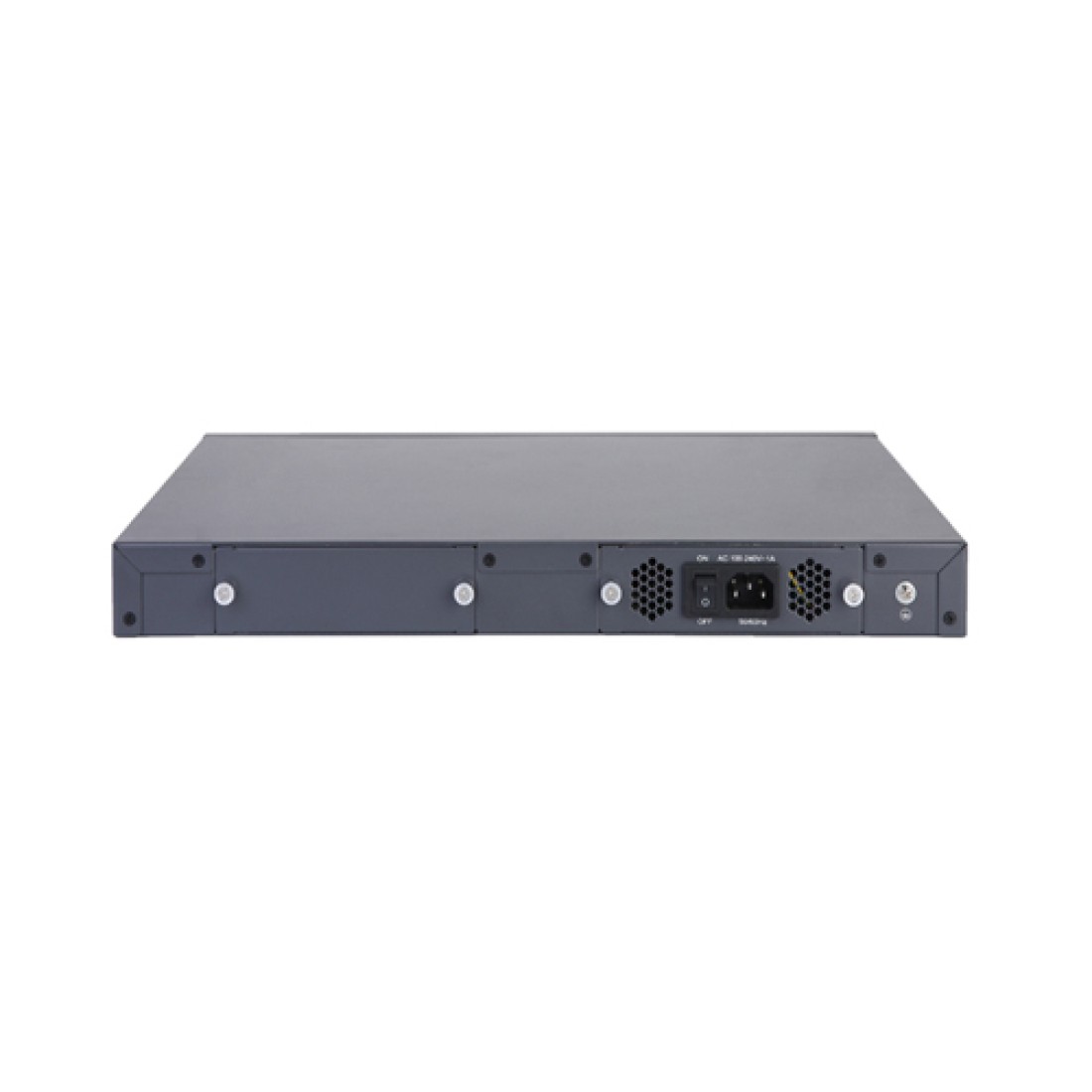

V-SOL 8-Port GPON OLT | V1600G1

| 0 Ratings

৳124,000 -4%

Regular Price: ৳129,000

Brand: V-Solution Model: V1600G1 Type: 8-Port GPON OLT Management Mode: SNMP, Telnet, CLI, WEB Warranty: 2-Year Warranty

Critical Stock

VARIATION

- +

V-SOL 8-Port GPON OLT | V1600G1: V1600G series GPON OLT products are 1U height 19-inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, and high-performance. It is appropriate to be deployed in a compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN, and ICT applications.
►Satisfactory standard Meet ITU-T G984/G.988 standard Meet China's relevant GPON standards ►L3 OLT Support static route RIP v1/v2、OSFP v2 ►Easy to manage Friendly EMS/Web/Telnet/CLI management CLI command style similar to mainstream manufacturers Support APP management ►Fully open platform Open to any brand of ONT ► High-performance cost 1U height compact design Adopt a mainstream chip scheme

Item			V1600G1
Chassis	Rack		1U 19-inch standard box
1000M Uplink Port	QTY		16
	Copper		8*10/100/1000M auto-negotiation
	SFP(SFP+) (Independent)		6*SFP and 2SFP+ slots (SFP+ is 10GE port)
GPON Port	QTY		8
	Physical Interface		SFP Slots
	Connector Type		Class B+/C+
	Max splitting ratio		1:128
Management Ports			110/100BASE-T out-band port, 1CONSOLE portion
PON Port Specification		Transmission Distance	20KM
		GPON port speed	Upstream 1.244G, Downstream 2.488G
		Wavelength	TX 1490nm, RX 1310nm
		Connector	SC/PC
		Fiber Type	9/125μm SMF
		TX Power	+1~+5dBm
		Rx Sensitivity	-28dBm
		Saturation Optical Power	-8dBm
Management Mode			SNMP, Telnet, CLI, WEB
Management Function			Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA, ONU authorization, ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management.
Layer2 Switch			16K Mac address; Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ; Support storm control based on port; Support port isolation; Support port rate limitation; Support 802.1D and 802.1W; Support static LACP. QoS based on port, VID, TOS, and MAC address. Access control list. IEEE802.x flow control. Port stability statistics and monitoring.
Multicast			IGMP snooping; 256 IP Multicast Groups;
DHCP			DHCP server; DHCP relay; DHCP snooping;
Layer 3Route			Arp proxy; Static route; 512 hardware Subnet Routes; 1024 hardware Host Routes;
GPON Function			Tcont dba; Gemport traffic; In compliance with ITUT984.standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc; Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid the broadcast storm; Support power-off alarm function, easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain a stable system; Support dynamic distance calculation on EMS online; Support RSTP, IGMP Proxy.
Dimension(LWH)			442mm200mm43.6mm
Weight			3.1kg
Power Supply		220VAC	AC:90~264V, 47/63Hz; Double Power Module/Hot Backup
Power Consumption			25W
Operating Environment		Working Temperature	-10~+55℃
		Storage Temperature	-40~+85℃
		Relative Humidity	5~90%(non-conditioning)

What is the price of the V-SOL 8-Port GPON OLT | V1600G1 in Bangladesh?

The latest price of the V-SOL 8-Port GPON OLT | V1600G1 in Bangladesh is 124,500৳. You can buy the V-SOL 8-Port GPON OLT | V1600G1 from our website or visit our showroom at the best price. Stay connected with our What's Page or Facebook Page.
